AUTOMATIC GATES.
SWING GATE AUTOMATION KITS
FROG UNDERGROUND GATE AUTOMATION KIT
UNDERGROUND automatic control system for hinged gates up to 3.5m in length. Features include: Steel foundation casing with special galvanized finish (complete with cover), transmission lever/spindle, release system with keys (accessible internally for manual opening), SELF-LOCKING electromechanical gearmotors in waterproof aluminum casing (protection grade IP67), standard opening to 110 degree’s.
FROG-P, pair of gates automation kit
* 2 x Underground foundation casings
* 2 x Underground motors 230V AC
* 2 x Key operated manual release mechanisms
* 1 x Control panel
* 1 x Radio receiver card
* 1 x Tuned antenna
* 2 x Radio remote controls
* 1 x Pair of safety photocells
FROG-S, single gate automation kit
* 1 x Underground foundation casings
* 1 x Underground motor 230V AC
* 1 x Key operated manual release mechanism
* 1 x Control panel
* 1 x Radio receiver card
* 1 x Tuned antenna
* 2 x Radio remote controls
* 1 x Pair of safety photocells
FAST-ARTICULATED ARM GATE AUTOMATION KIT
The FAST Articulated arm gate operator is designed to automate small gates that are hung from any type of pillars or posts. The FAST motor comes complete with an in-built control panel, which makes the installation as simple as any machine available in the world. The FAST operator will automate most lightweight gates up to 2.3m each leaf. The FAST can be operated by all the standard CAME accessories eg. Remote controls, push buttons, keypads etc. In the eventually of a power cut the FAST has a lever operated manual release mechanism which is situated on the motor casing. The simplicity of operation of a winding arm machine always ensures the fastest possible operating of the gate.
FAST-P, pair of gates automation kit
* 2 x Fast motors 240V
* 1 x built-in control panel 240V
* 1 x radio receiver
* 1 x tuned antenna
* 2 x remote control handsets
* 1 x pair safety photocells
1 x flashing “in movement” light
KRONO WORM DRIVE GATE AUTOMATION KIT
External automatic control system for two-wing hinged gates with wings up to 2.4m in length each. Features include: SELF-LOCKING electromechanical gearmotors (protection grade IP654, body in die-cast aluminum and extruded, adjustable support brackets, release system with key interchangeable within the CAME system.
KRONO-P, pair of gates automation kit
* 2 x KRONO motors 230V AC
* 1 x 240V Control panel
* 1 x radio receiver card
* 1 x Tuned antenna
* 1 x Radio remote control
* 1 x Pair safety photocells
* 1 x Flashing “in movement” light
FERNI ARTICULATED ARM GATE AUTOMATION KIT
External automation control system with ARTICULATED ARM, for hinged gates up to 4m in length. Features include: SELF-LOCKING electromechanical gearmotors (protection grade IP54), micro switch for gate opening arrest, release system with key interchangeable within the CAME system, opening up to 110 degree’s (for wings up to 5m in length)
FERNI-P, pair of gates automation kit
* 2 x FERNI articulated arm gate motors 230V
* 1 x Control panel
* 1 x Radio receiver card
* 1 x Tuned antenna
* 2 x Radio remote controls
* 1 x Pair safety photocells
FERNI-S, single gate automation kit
* 1 x FERNI articulated arm gate motor 230V
* 1 x Control panel
* 1 x Radio receiver card
* 1 x Tuned antenna
* 2 x Radio remote controls
* 1 x Pair safety photocells

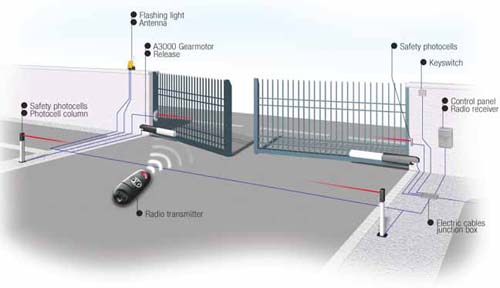

ATI WORM DRIVE GATE AUTOMATION KIT
External automatic control system for hinged gates up to 5m in length. Features include: SELF-LOCKING electromechanical gearmotors (protection grade IP54), body in die-cast aluminum and extruded aluminum, adjustable support brackets, micro switch for gate opening arrest, release system with key interchangeable within the CAME system, opening up to 110 degree’s (for wings up to 5m in length)
ATI-P, pair of gates automation kit
* 2 x ATI worm drive 5m gate motors 230V AC
* 1 x Control panel
* 1 x Radio receiver card
* 1 x Tuned antenna
* 2 x Radio remote controls
* 1 x Pair of safety photocells
ATI-S, single gate automation kit
* 1 x ATI worm drive 5m gate motor 230V AC
* 1 x Control panel
* 1 x Radio receiver card
* 1 x Tuned antenna
* 2 x Radio remote controls
* 1 x Pair of safety photocells
SLIDING GATE AUTOMATION KITS
BX & BK SLIDING GATE AUTOMATION KIT
Came sliding gate kits will operate sliding gates up to 220KG.
Sliding gate motor including:
* 1 x control panel
* 1 x radio receiver
* 1 x tuned antenna
* 2 x remote control handsets
* 1 x pair of safety photocells
BX-B, sliding gate automation kit with manual limit switches, for gates up to 800KG
BK-1800, sliding gate automation kit with manual limit switches, for gates up to 1800KG
BK-2200, sliding gate automation kit with manual limit switched, for gates up to 2200KG
AUTOMATIC PARKING BARRIERS
BARRIER G4
Gard4000, barrier system for roadway widths up to 4m
* 1 x G4000 4m barrier unit
* 1 x barrier arm (Rectangular or Tubular)
* 1 x Red phosphorescent stickers (x24)
* 1 x DOC-I Pair recessed safety photocells
* 1 x DOC-LN Safety photocell column
4m Barrier Kit (Rectangular arm)
4m Barrier Kit (Tubular arm)
Gard8000, barrier system for roadway widths up to 8m
* 1 x G8000 8m barrier unit with control panel
* 2 x balancing springs
* 1 x flashing light
* 1 x pair of safety photocells
* 1 x photocell support bracket
* 2 x 4m barrier arm sections
* 1 x connecting joint for barrier arm sections
* 1 x reinforcement for barrier arm
* 1 x fixed support for barrier arm
8m Barrier Kit
8m Internal Light for barrier arm
BARRIER G8
